ElasticSearch / OpenSearch

Events can be sent to an ElasticSearch (or OpenSearch ) index or data stream to be indexed as documents. Like all sinks, an ElasticSearch sink can be created in the Stream Portal…

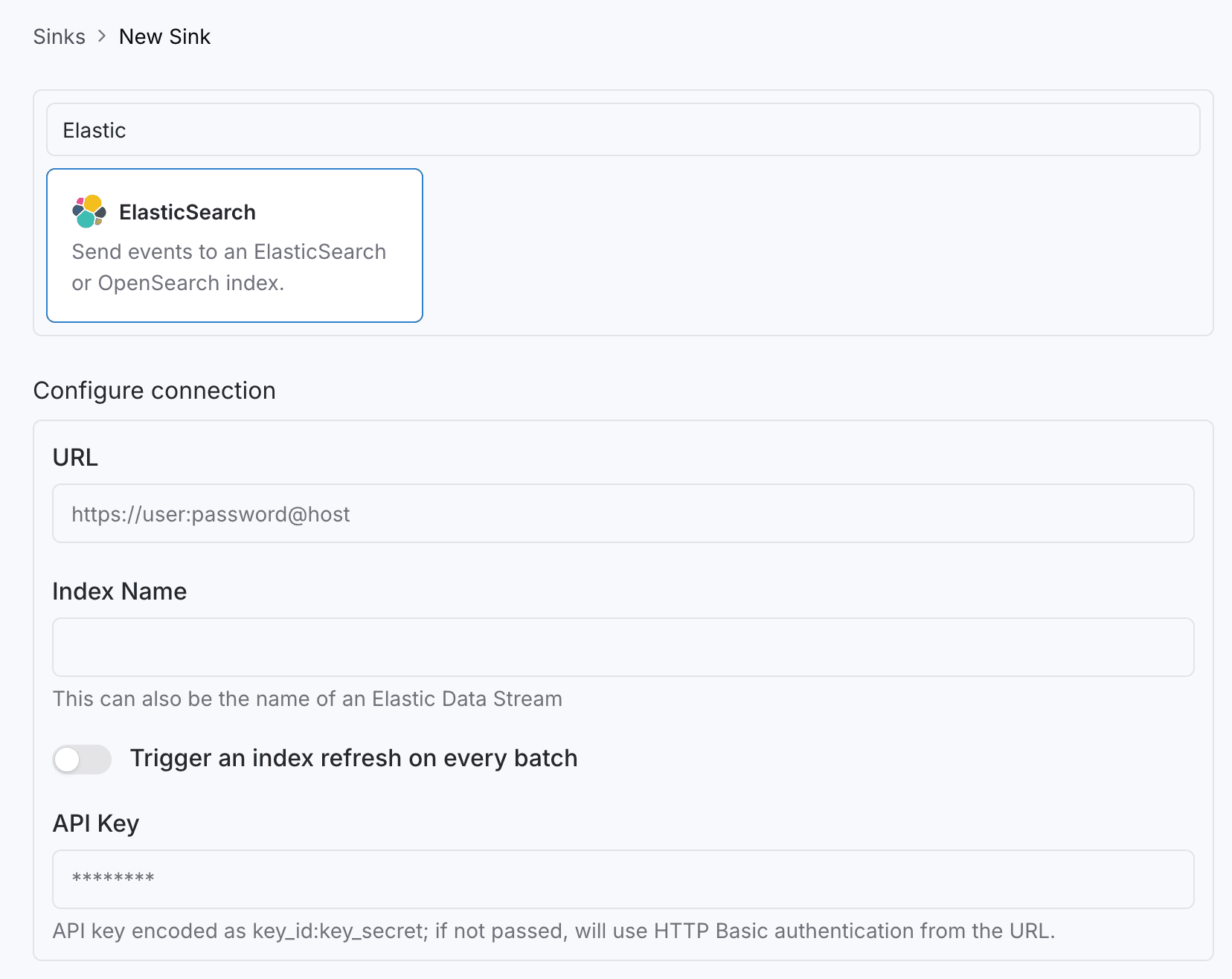

elasticsearch sink creation

… or in the API .


curl -X 'POST' 'https://api.svix.com/api/v1/stream/strm_30XKA2tCdjHue2qLkTgc0/sink' \
  -H 'Authorization: Bearer AUTH_TOKEN' \
  -H 'Content-Type: application/json' \
  -d '{
  "type": "elasticSearch",
  "config": {
    "url": "https://username:password@server:9200",
    "indexName": "my_index_name",
    "refresh": true
  },
  "uid": "unique-identifier",
  "status": "enabled",
  "batchSize": 1000,
  "maxWaitSecs": 300,
  "eventTypes": [],
  "metadata": {}
}'

Every payload you publish will be indexed as a document using the create action on a bulk index operation .

Transformations

By default, all elasticSearch Sinks come bundled with the following transformation code.


/**
 * @param input - The input object
 * @param input.events - The array of events in the batch. The number of events in the batch is capped by the Sink's batch size.
 * @param input.events[].payload - The message payload (string or JSON)
 * @param input.events[].eventType - The message event type (string)
 *
 * @returns Object containing a series of documents to index
 * @returns returns.documents - Array of index requests
 * @returns returns.documents[].document - A JSON object of the document to index.
 * @returns returns.documents[].id - An optional string to use as the document ID in ElasticSearch
 */
function handler(input) {

  const documents = input.events.map((event) => ( { document: event.payload }));

  return {
    documents
  };
}

input.events matches the events sent in create_events.

The returned object contain a single key (documents) containing an array of JSON objects — each of these should contain a JSON object named document for the actual payload to index, and may contain a key named id which will be used as the document key in ElasticSearch. If id is not included, one is generated synthetically from the stream data.

The default transformation will simply copy your created payloads into ElasticSearch.
